Integrated circuits,
clearly explained.

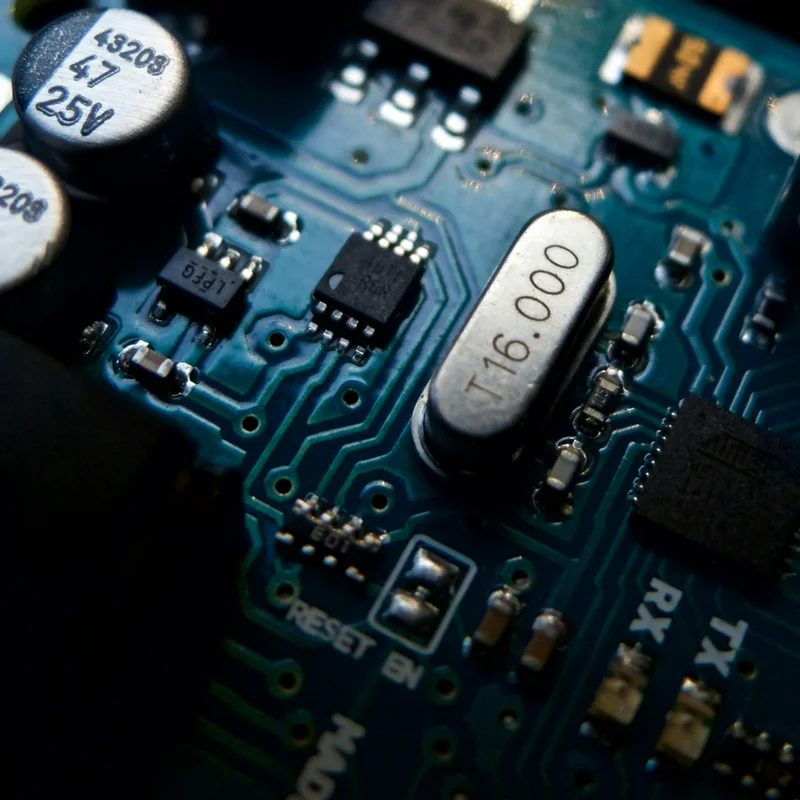

An integrated circuit is an electronic circuit whose components and connections are fabricated together on semiconductor material, usually silicon. (Bosch Semiconductors)

Instead of assembling every transistor, resistor, and connection as a separate board-level part, an IC integrates them into a compact circuit. (Bosch) The words “chip” and “microchip” are often used when talking about these devices. (SparkFun)

Not every IC is a computer processor: an IC may amplify a signal, perform a logic operation, regulate a voltage, control a motor, or act as a programmable controller. (SparkFun)

When learning a new device, ask three separate questions: What does it do? What signals does it use? How does it connect to the board? This is a more useful starting point than judging a chip by its appearance.

ICs can be grouped by the signals they handle, with analog, digital, and mixed-signal devices serving different roles. (Bosch) A function name such as “amplifier” or “microcontroller” is often more specific than the category alone.

The electronic function comes from the way transistors and other components are formed and interconnected within the chip. (Bosch) Different circuit designs produce different functions, from a simple logic gate to a complex processor. (SparkFun)

1. Form the circuit

   Fabrication processes create the components and interconnections on semiconductor material. (Bosch)

2. Package the die

   The small circuit die is packaged to protect it and make its connections accessible. (SparkFun)

3. Connect the system

   The package terminals connect the chip to power and other components on a board. (SparkFun)

For a real component, the datasheet is your starting point. Identify its supply connections, pin functions, operating conditions, and recommended application circuit before using it. A general explanation is not a substitute for device-specific documentation.

ICs provide computing, control, sensing, communications, and power-related functions in electronic systems. (Bosch) Common device examples include microcontrollers, operational amplifiers, logic gates, voltage regulators, and digital sensors. (SparkFun)

Processing and control

Microprocessors and microcontrollers handle programmable tasks. (SparkFun)

Working with signals

Amplifiers and sensor interfaces help process information from electrical signals. (Bosch)

Managing power

Voltage regulators and motor controllers support power and control functions. (SparkFun)

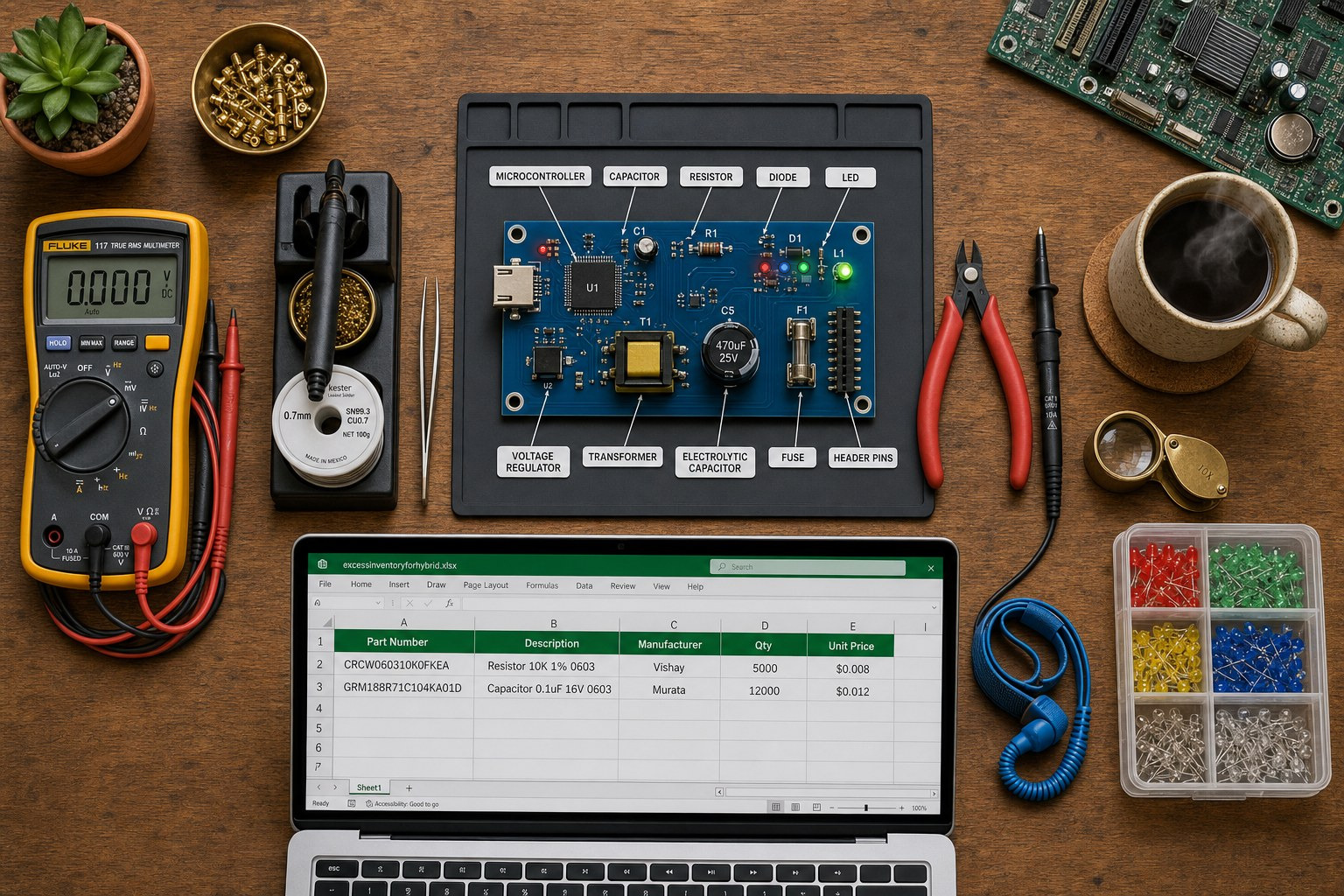

A useful learning exercise is to choose one chip on a board and look up its full marking. Identify the function first, then the package, and finally the connections to surrounding components. Avoid assuming that a large chip is always a processor or that a small one has a simple role.

The package is the physical form of an IC, not its electrical function. (SparkFun) Devices with similar purposes can come in very different packages, so use the exact package drawing and pinout when identifying a part.

Before treating two parts as interchangeable, compare the full manufacturer part numbers, function, pinout, electrical specifications, and mechanical drawings. Matching package names or pin counts is not sufficient evidence of compatibility.
